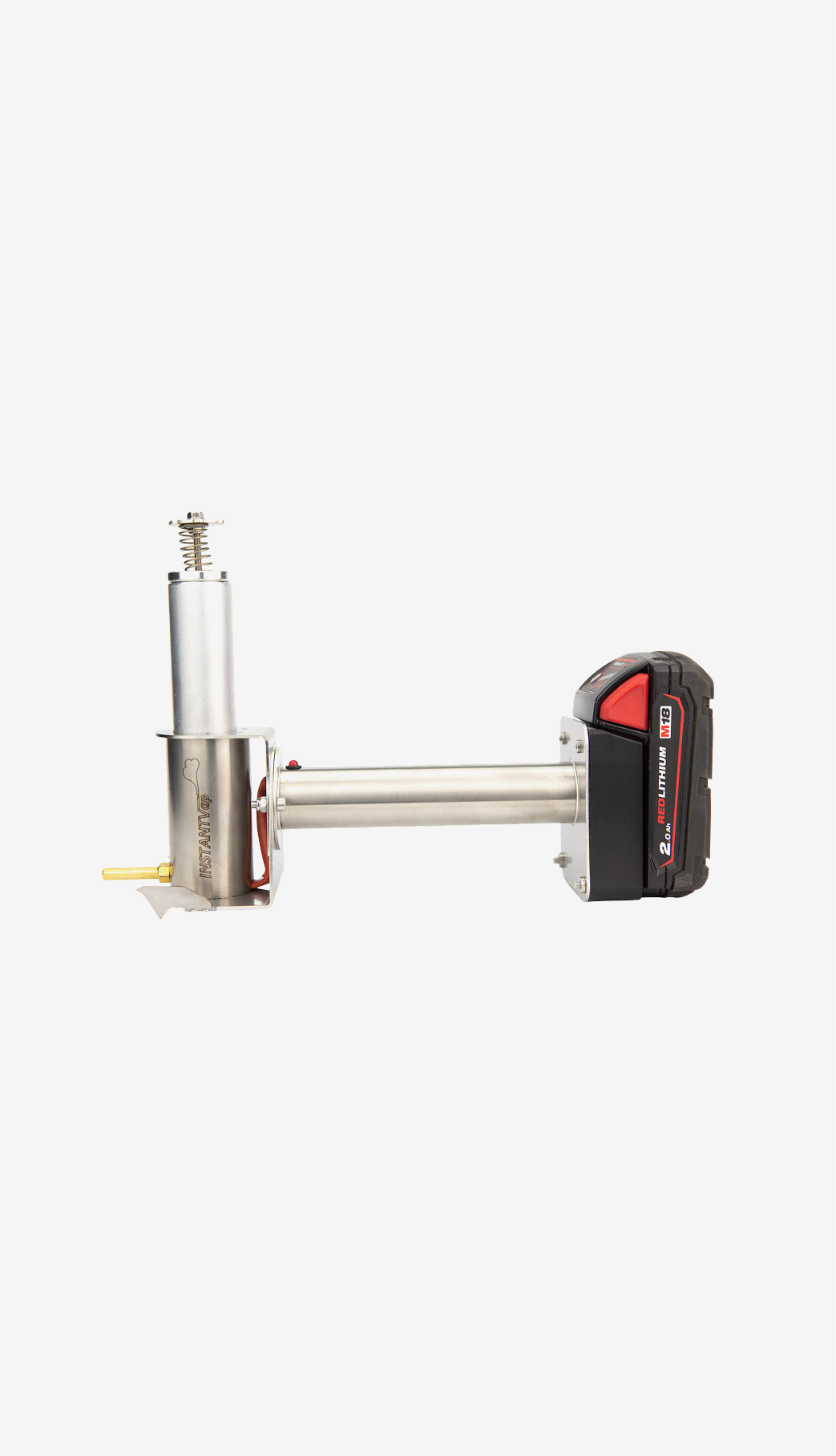

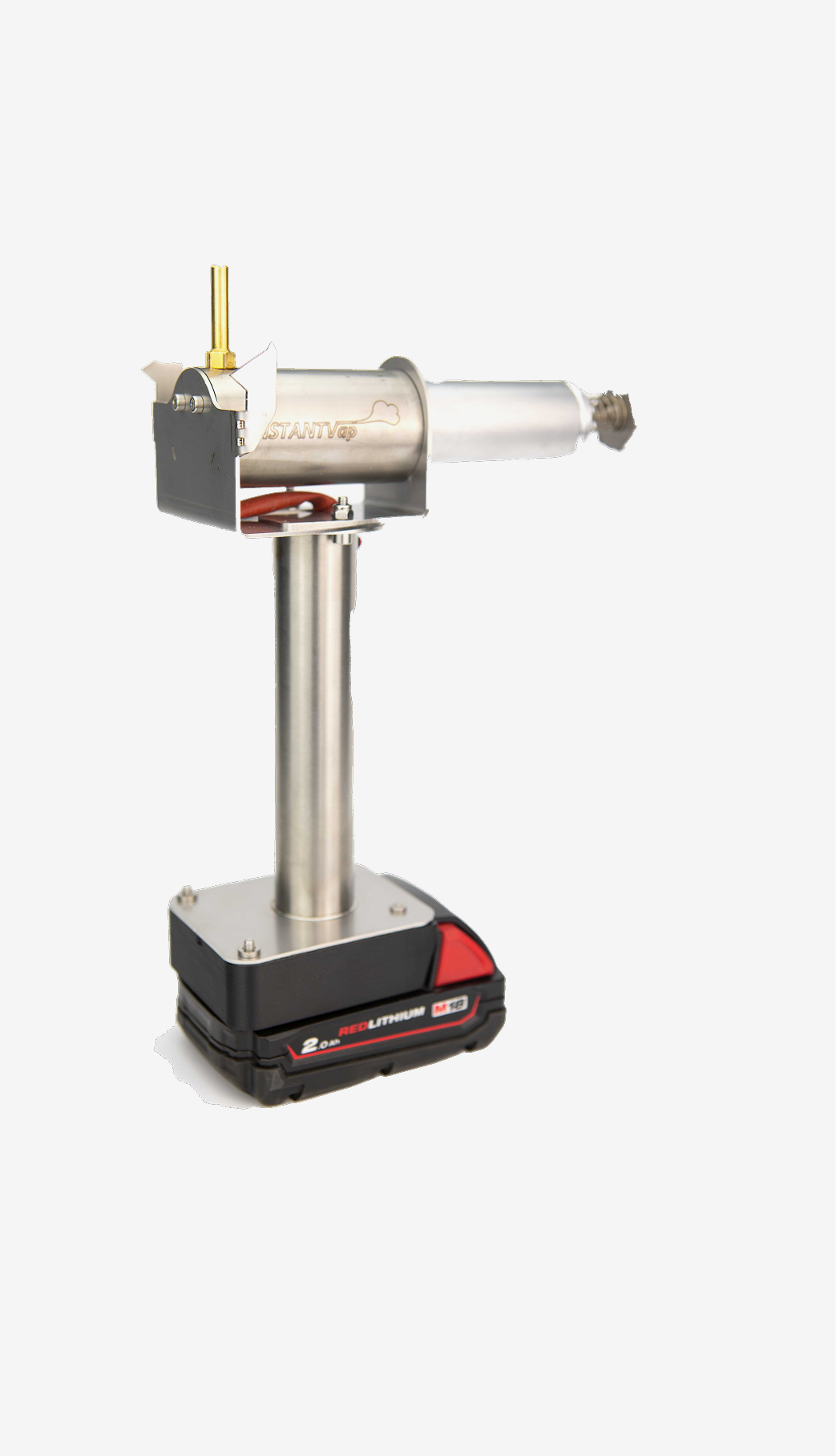

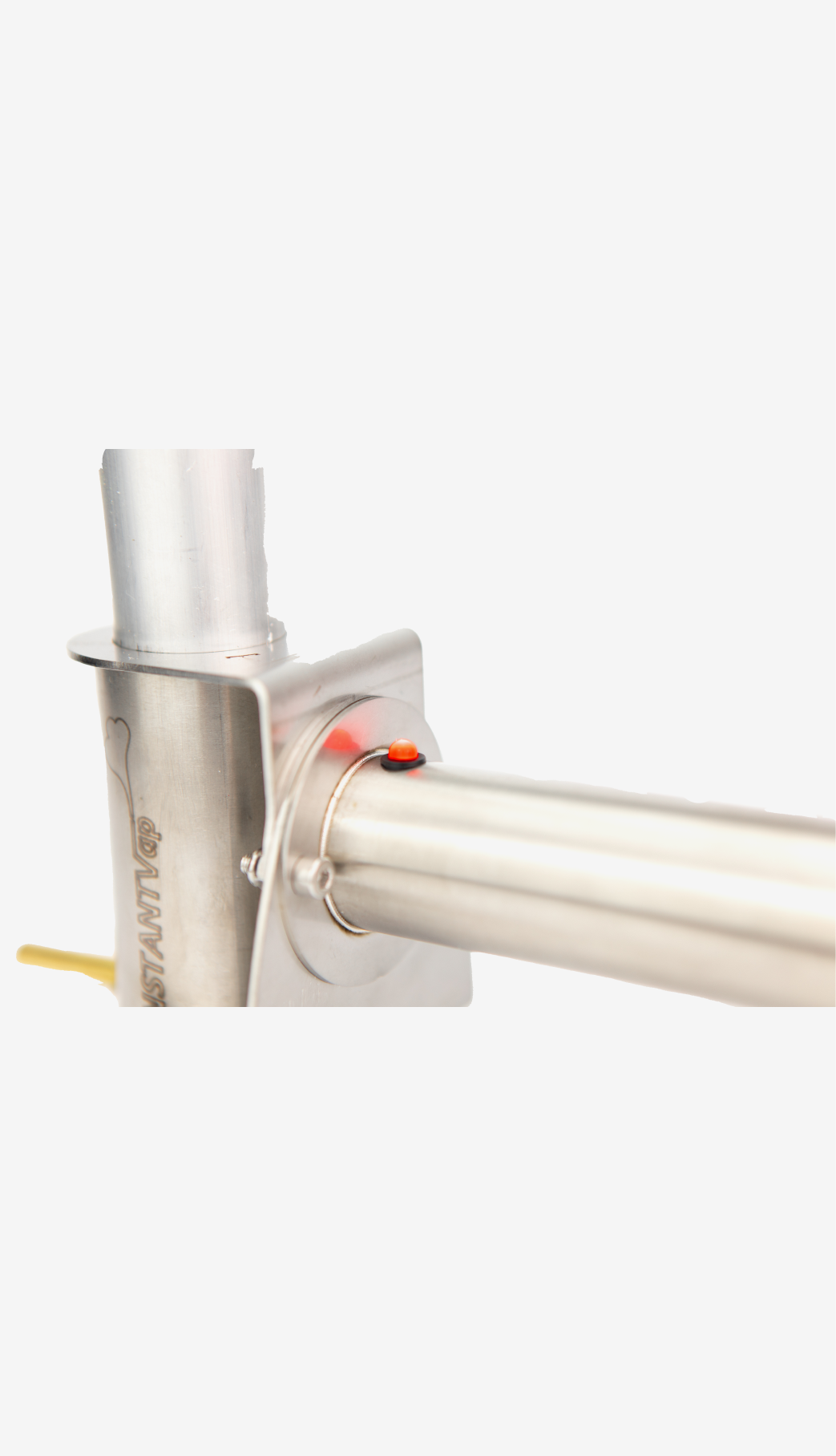

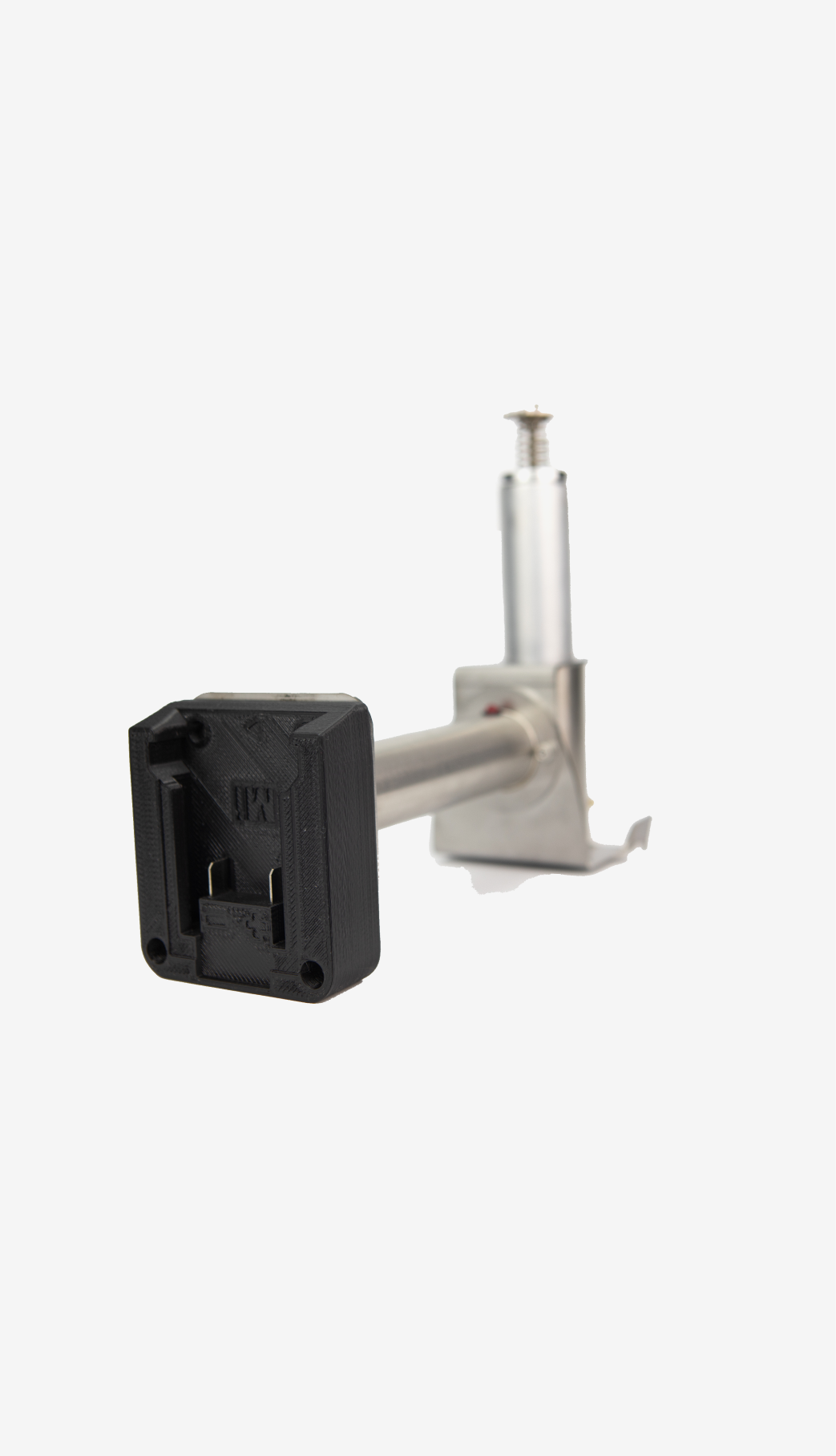

The InstantVap Lite is an entry-level, cordless oxalic acid sublimator specifically designed for hobbyist beekeepers (typically those with 1–20 hives). It offers the same build quality as the larger models but in a more compact, cost-effective package.

The "Lite" model uses a smaller 145W heating element to conserve battery life, which results in slightly longer cycle times compared to the "Turbo" or "Compact" versions.

·

Initial Warm-up: Approximately 2–3 minutes to reach the operating temperature (230°C / 445°F).

·

·

Treatment Time: For a standard 2g dose, the vaporization itself takes about 25–30 seconds.

Reheating (Recovery) Time: After dosing, the unit needs a brief recovery period to return to the set temperature. Total time per hive (vaporization + reheating) is typically 50–60 seconds.

Power Output

145W (8A)

Voltage

18V–20V (Compatible with major power tool batteries)

Operating Temp

Pre-set at 230°C (Dynamic temperature control prevents overheating)

Weight

0.7 kg (excluding battery)

Construction

Acid-resistant stainless steel frame and a replaceable brass spout

Battery Life

A 2Ah battery can treat roughly 8–10 hives (including initial warm-up)

·

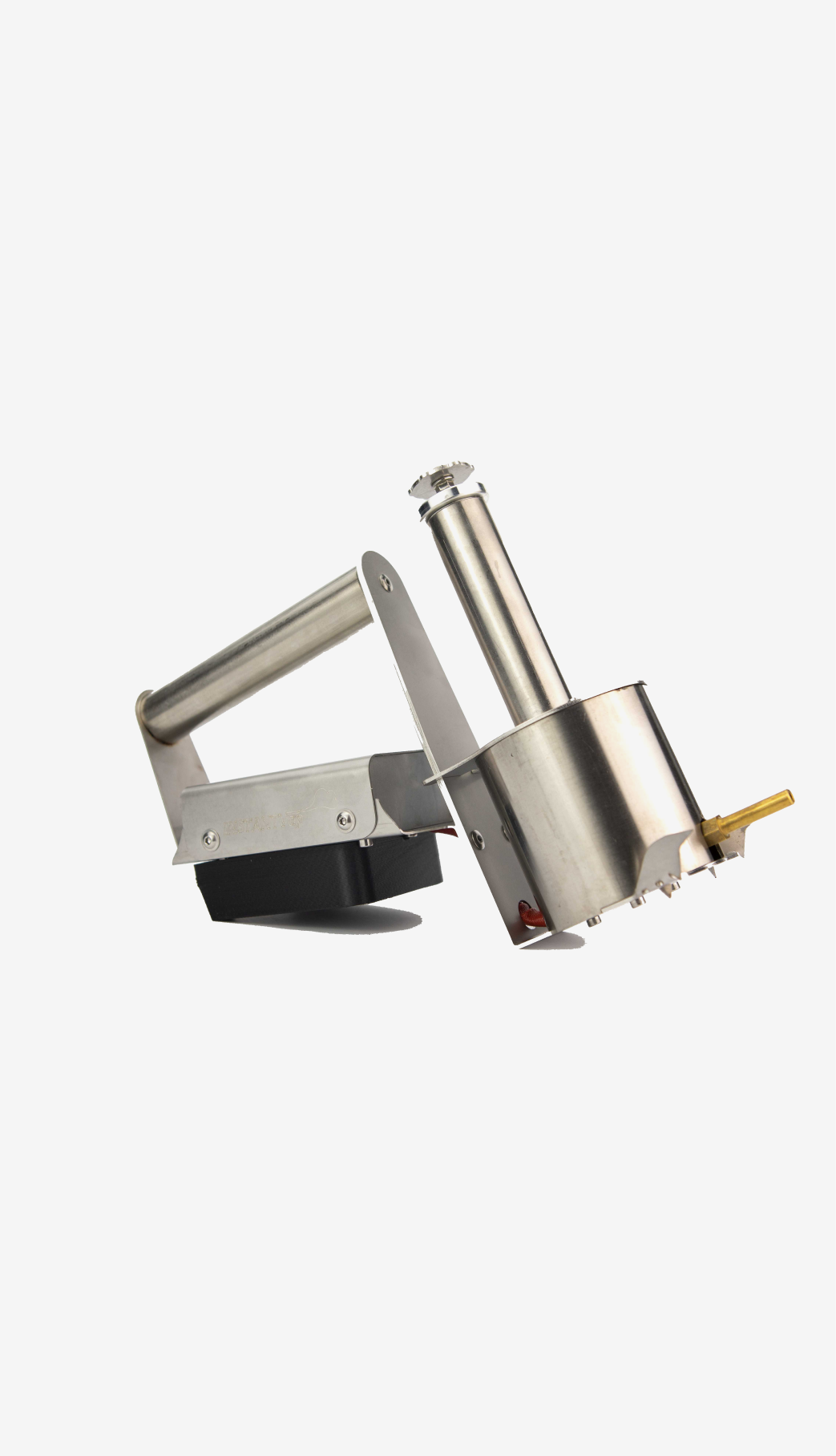

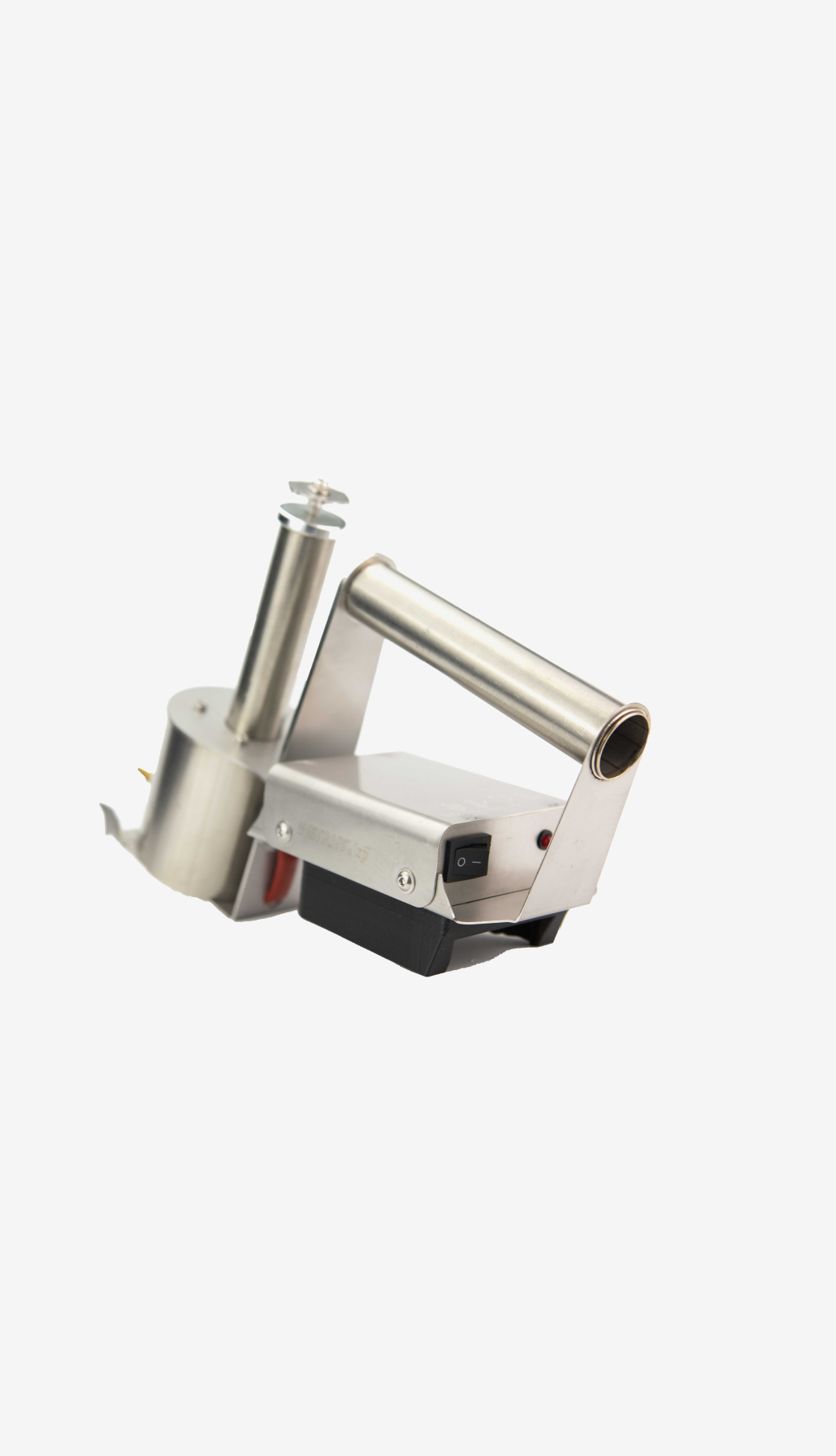

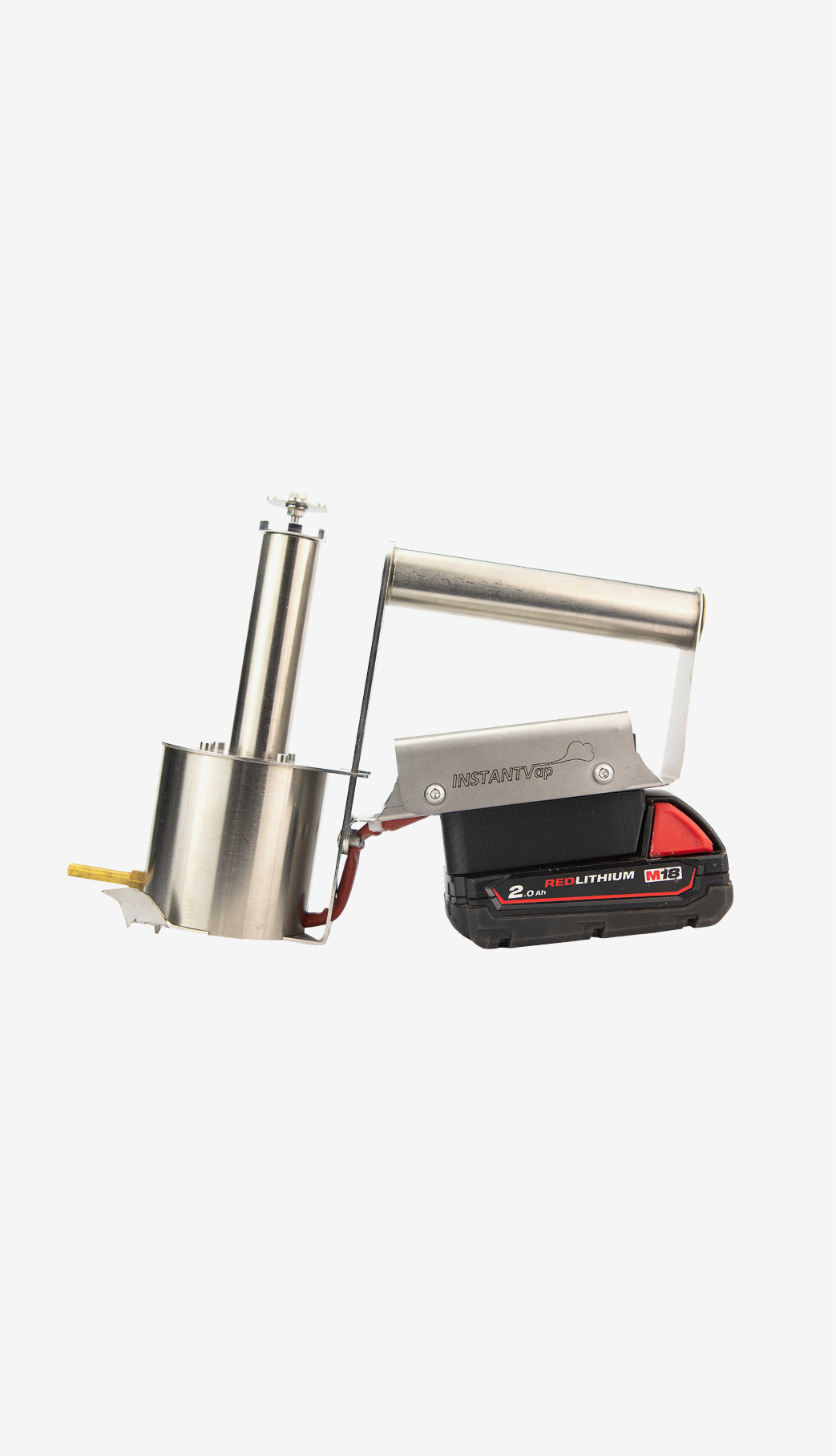

 The InstantVap Compact is a professional-grade, cordless oxalic acid vaporizer designed for efficiency and durability. It is specifically optimized for beekeepers managing 20 to 100 colonies, balancing the portability of the Lite model with the power of the Turbo.

The unit uses Dynamic Temperature Control (PID) to maintain a preset temperature of 230°C (445°F).

• Initial Heat-up: Takes approximately 3–5 minutes. It consumes about 1Ah of battery capacity just to reach operating temperature.

• Vaporization Interval: For a standard 2g dose, the treatment takes 20–25 seconds.

• Recovery/Cycle Time: Once the dose is finished, the temperature will drop slightly. You can proceed to the next hive as soon as the LED returns to "Steady-on" (usually a matter of seconds, as it does not require a full cooling/reheating cycle between hives).
• Ambient Efficiency: At 20°C (68°F), 1Ah of battery life provides enough power for roughly 10 treatments (2g each) after the initial warm-up.

The Compact model uses a single LED system to communicate its status, which is visible even in direct sunlight:

• Slow Blinking: Heating up.

• Steady-on: Ready for dosing/treatment.

• Fast Blinking: Vaporization in progress.

• Double Blink & Pause: Battery discharged (protection mode).

Feature Detail Power Output250W (14A)

Voltage Range18V–20V (Compatible with DeWalt, Milwaukee, Makita, Bosch, etc.)

Dosage Range Adjustable from 1g to 4g via a tool-free plunger

Build Material Acid-resistant stainless steel with a replaceable brass spout

Safety Feature Built-in deep discharge protection (auto-shutoff at 15.4V)

Hole Size Requires a 6.5mm or 7mm hole in the hive wall

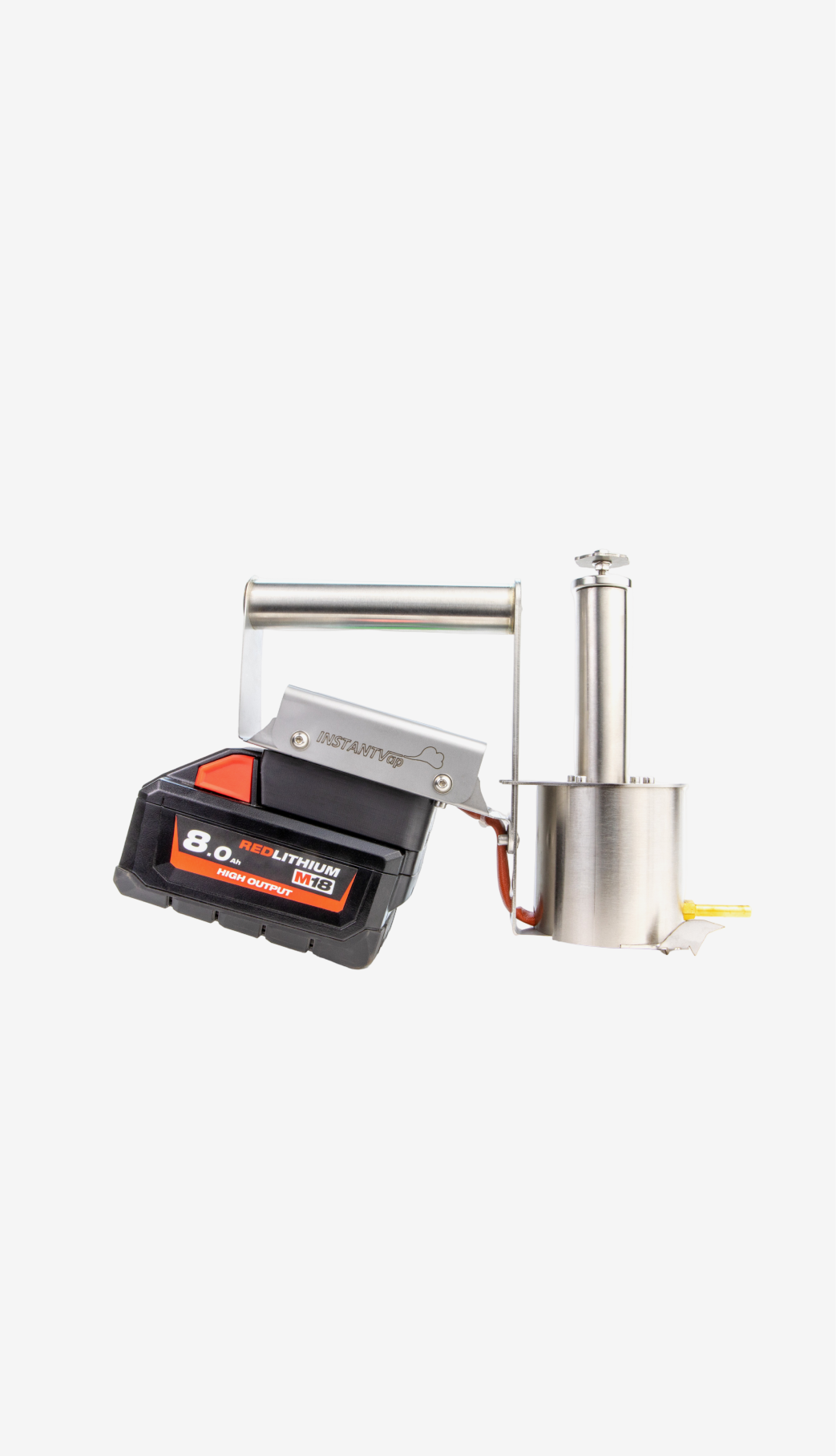

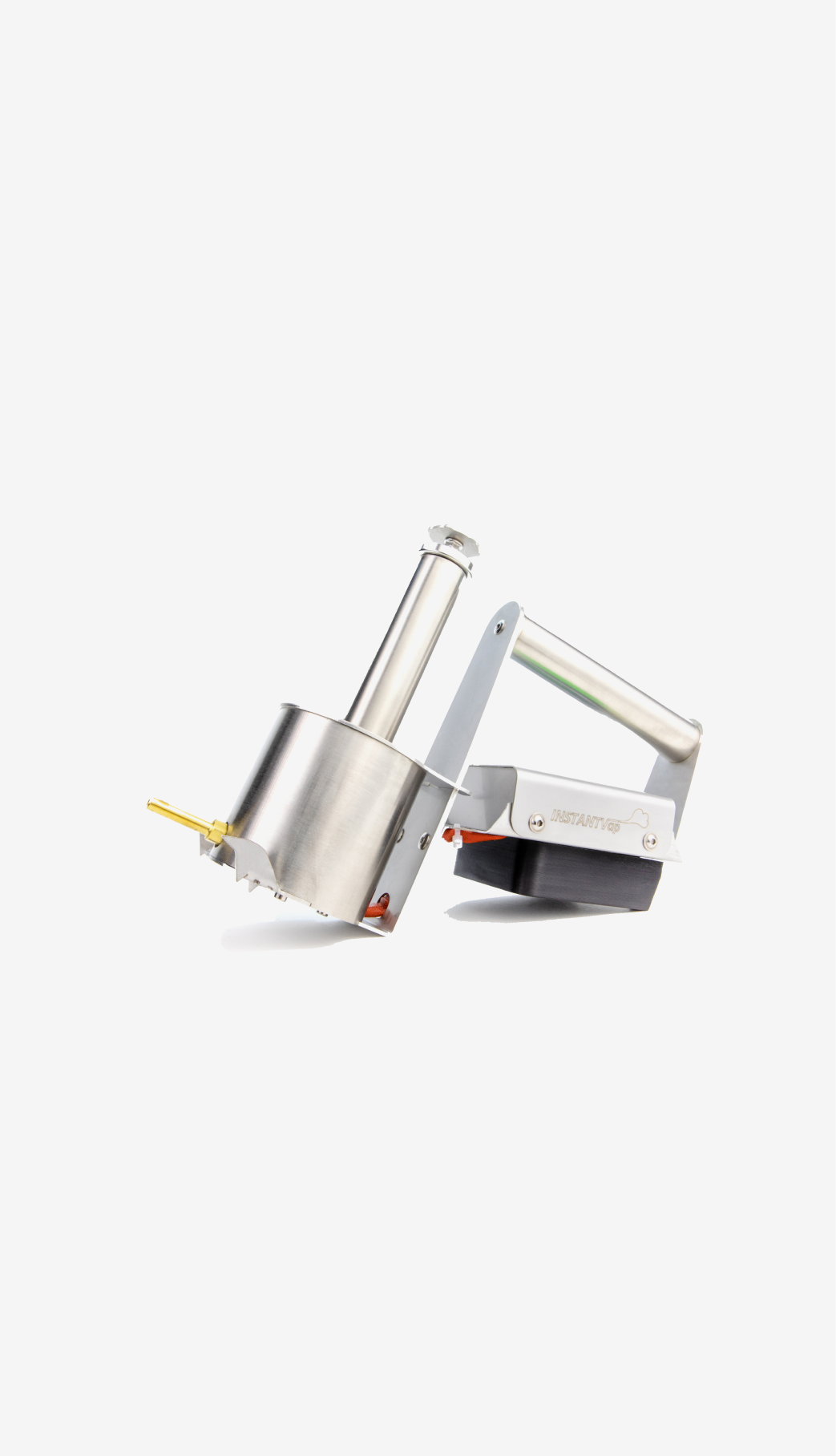

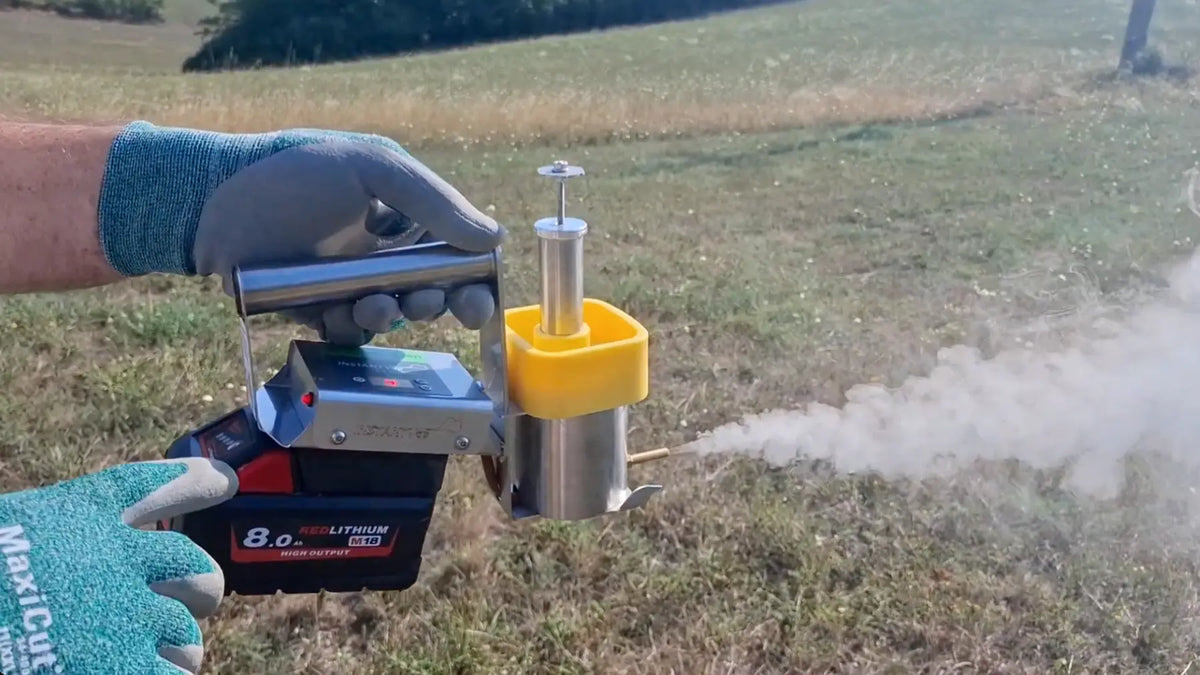

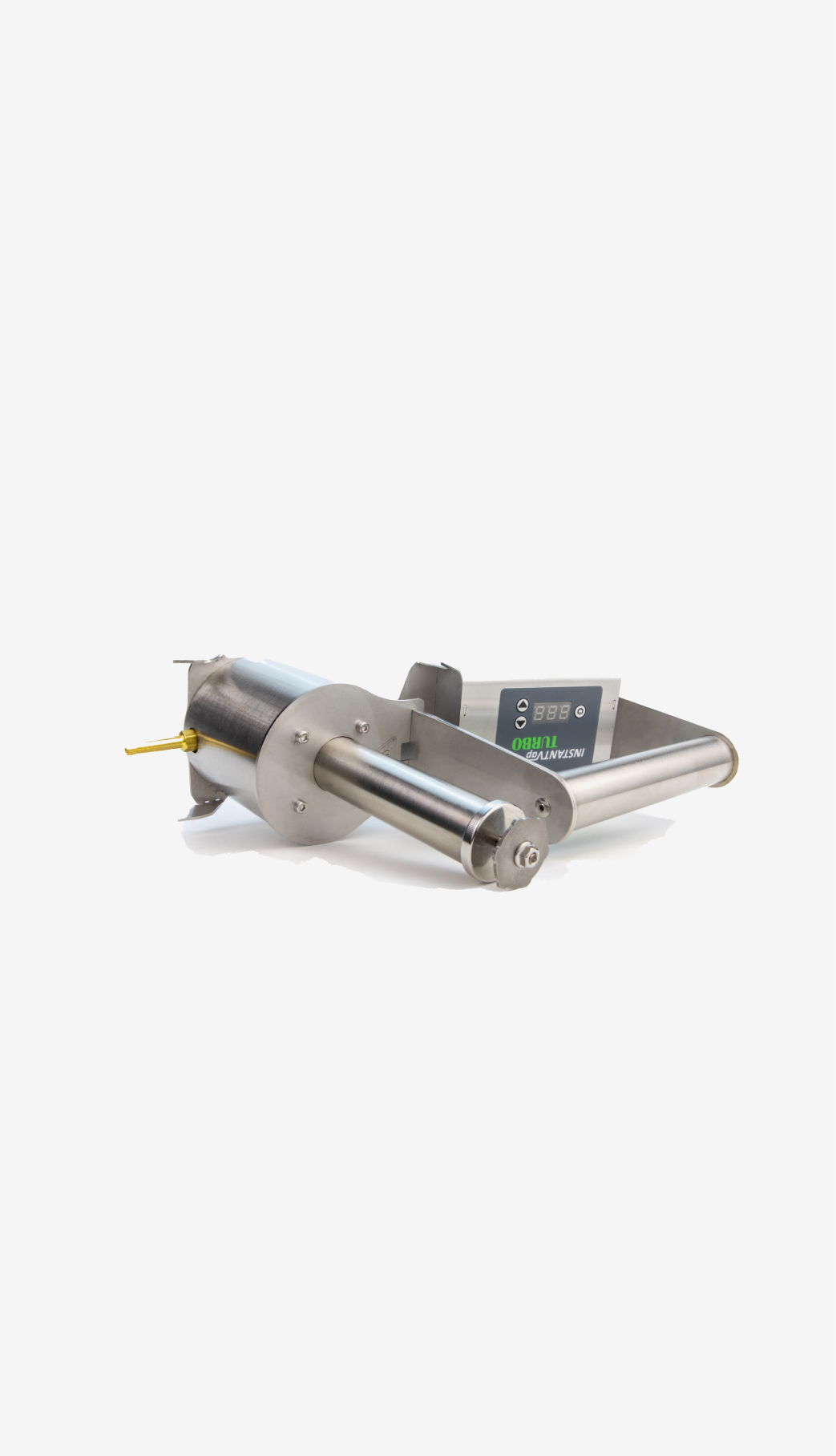

The InstantVap Turbo is the top-tier, high-performance evolution of the Compact model. It is specifically designed for commercial or large-scale operations where speed and throughput are the highest priorities, boasting nearly double the power output of its predecessor.

The Turbo is significantly faster than the Compact, primarily because it is optimized to run at a higher standard temperature.

• Treatment Speed: A standard 2g dose takes only 10 seconds at the recommended 260°C (500°F). In contrast, the same dose takes ~25 seconds on the Compact at 230°C.

• Initial Heat-up: Takes roughly 3–5 minutes. Like other models, it consumes about 1Ah of battery capacity just to reach the initial operating temperature.

• Recovery/Cycle Time: Because of its 400W power output (vs. 250W in the Compact), the Turbo recovers temperature almost instantly. There is virtually no waiting between hives; by the time you move to the next colony and load the dispenser, the unit is typically back to its target temperature.

• Battery Efficiency: * 1Ah provides enough power for approximately 8 treatments (2g each) at 20°C ambient temperature.


  • Requirement: A battery with a minimum 4Ah capacity is required to handle the high 22A current draw.

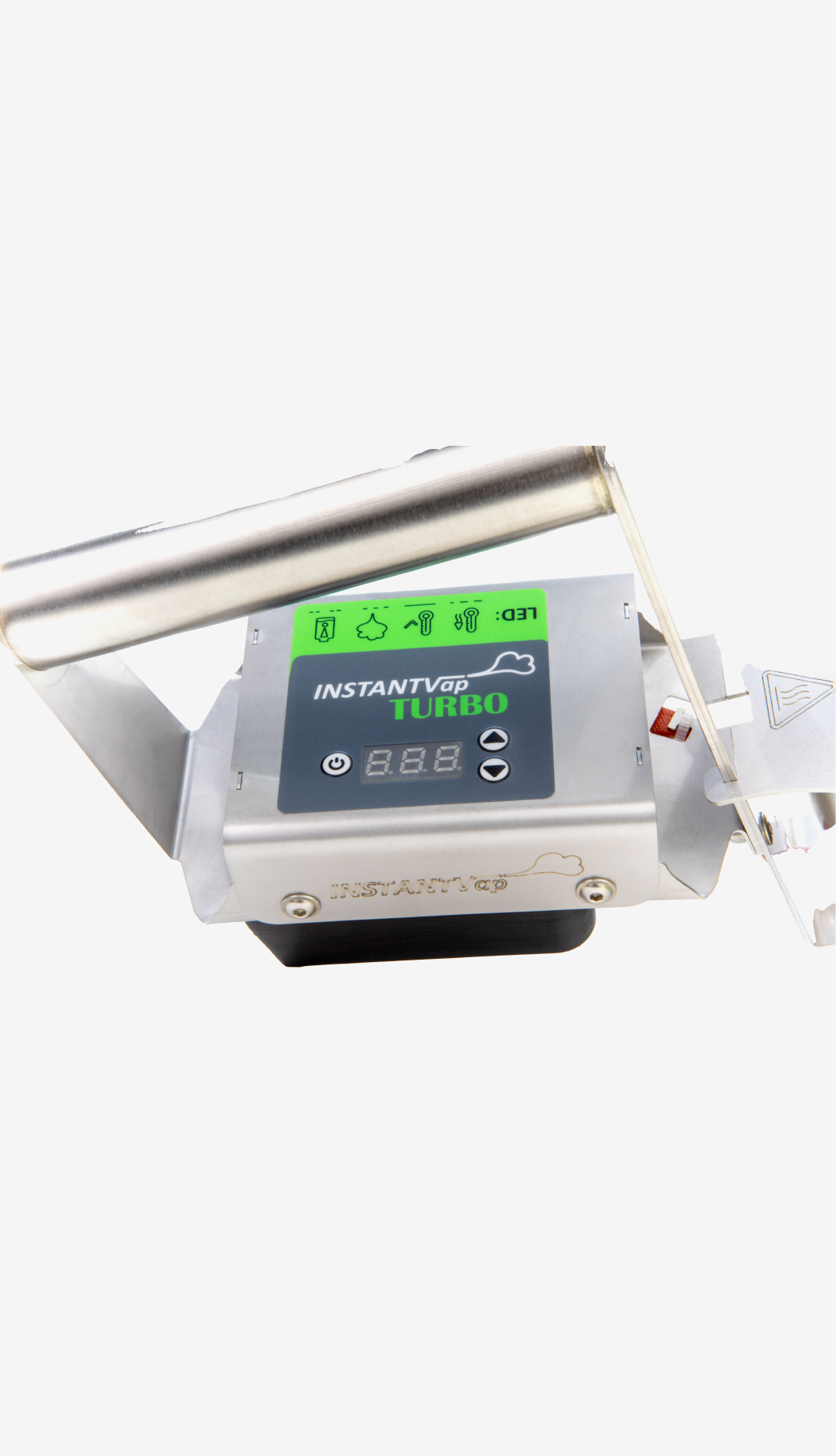

Unlike the Compact, which relies on a single LED, the Turbo features a side-mounted digital LED screen providing real-time data:

• Real-time Temperature: Monitors the crucible heat (adjustable from 230°C to 260°C).

• Voltage Meter: Shows the battery's current health and charge level.

• Cycle Counters: Includes a "Total Cycles" lifetime counter and a "Battery Cycle" counter to track how many hives you've treated in a single session.


Feature Detail Power Output400W (High power for rapid sublimation)

Operating Temp 230°C to 260°C (Optimized at 260°C for maximum efficacy)

Dosage 1g to 4g (Adjustable tool-free plunger)

Protection Built-in deep discharge protection (auto-shutoff at 15.2V)

Weight~1.25 kg (without battery) Compatibility Standard 18V/20V tool batteries (DeWalt, Milwaukee, Makita, Bosch, etc.)
